FMS And CIM Set Up

FLEXIBLE MANUFACTURING SYSTEMS :-

Flexible Manufacturing Systems are an evolutionary process from numerical control (NC), then computer numerical control (CNC), to manufacturing systems. Numerical control provides the ability for a machine to use a program to process a part. Computer numerical control provides the ability to store multiple programs and interchange these programs for a machine. CNC controlled machines combined with a pallet changing device provides the ability to process a mixture of parts without setup. FMS combine multiple CNC controlled machines with pallet handling systems, pallet load/unload stations and a supervisory computer control.

ADVANTAGE OF SEPL FMS SETUP :-

• To reduce set up and queue times
• Improve efficiency
• Reduce time for product completion
• Utilize human workers better
• Improve product routing
• Produce a variety of Items under one roof

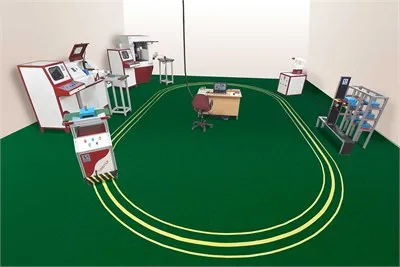

SEPL FMS SETUP :-

MAIN EQUIPMENTS
CNC Lathe Trainer	Model VLM – T - 100
CNC Mill Trainer	Model VMM – A - 200
6 Axis Robot	SR-6
SUPPORTING EQUIPMENTS
	Loading and Unloading Arm for Lathe
	Loading and Unloading Arm for Mill
	Automated Guided Vehicle
	Automatic Storage & Retrieval System
	Pallet Conveyor
	Linear Shuttle Conveyor
CONTROLLER & SOFTWARE
	P.C. Based controller
	FMS Interfacing Software / SRobot6 / Winmill / Winlathe

COMPUTER INTEGRATED MANUFACTURING SET UP ( CIM )

CIM: “The Integration of the total manufacturing enterprise through the use of integrated systems and data communications coupled with new managerial philosophies that improve organizational and manufacturing efficiency.”

CIM Setup covers the training of advanced automation and new technological manufacturing processes. It consist of CNC Machines, Robotics, Automated Material Handling System, Fully automated assembly stations and advance Inspection systems.

SEPL CIM SETUP :-

MAIN EQUIPMENTS
CNC Lathe Trainer	Model VLM – T - 100
CNC Mill Trainer	Model VMM – A - 200
6 Axis Robot	SR-6
Co-ordinate Measuring Machine	CMM
SUPPORTING EQUIPMENTS
	Loading and Unloading Arm for Lathe
	Loading and Unloading Arm for Mill
	Automated Guided Vehicle
	Automatic Storage & Retrieval System
	Pallet Conveyor
	Linear Shuttle Conveyor
	Assembly Station
	Vision Inspection System
CONTROLLER & SOFTWARE
	P.C. Based controller
	CIM Interfacing Software / SRobot6 / Winmill / Winlathe

For Detailed Specifications please contact us on info@sinewaveengineering.com
