TITLE
DESCRIPTION
UNIT

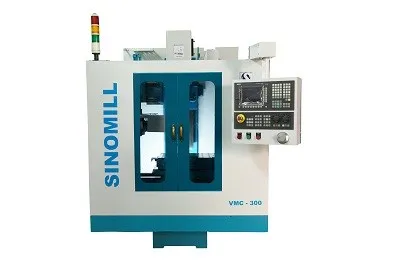

SINOMILL
STROKE / TRAVERSE
X Axis
mm
400
Y Axis
mm
300
Z Axis
mm
300
Distance from spindle nose to table top
mm
70 - 400
Traverse Screws
Type
Ball Screw
Guide Ways
Type
LM Guide
TABLE
Table Size
mm
650 X 350
No. of T Slots x Size x Pitch
nos. x mm x mm
4 x 14 x 90
Max. Load on table
kgs
120
Clamping Area
mm
500 x 250
SPINDLE
Spindle bore taper
Type
BT 30
Spindle speed
rpm
60 - 6000
Spindle Motor power (Cont./15mins.)
kW
3.7 / 5.5
FEED SYSTEM
Rapid traverse rate X & Y Axes
m/min
10 & 10
Rapid traverse rate Z Axis
m/min
10
Cutting feed rate X & Y
m/min
1 – 6000
Cutting feed rate Z
m/min
1 – 5000
AUTOMATIC TOOL CHANGER
No. of tools
nos
12
Tool shank
Type
BT 30
Max. tool diameter with adjacent tool
mm
16
Max. tool length
mm
200
Max. tool weight
kg
3
ATC Type
ARM LESS
CNC SYSTEM
Controller
Type
SIEMENS Fanuc Latest
Motors & Drives
Type
SIEMENS Fanuc Servo
ACCURACY & INCREMENT
Positioning Accuracy
mm
0.01
Repeatability
mm
± 0.005
Resolution
mm
0.001
Min. Input Inmrement
mm
0.001
MACHINE SIZE
Front x Side
mm
1500 x 1700
Machine weight (Approx)
kg
2500
POWER SUPPLY
Main Supply
Type
415 V, 3 Ph, 50 Hz
STABILIZER
12 KVA
Standard Features:
- AC servo drives
- AC variable speed spindle motor
- Hardened and ground linear motion guide-ways
- Hardened and ground ball-screws
- Feedback through absolute encoder
- Automatic tool clamping-unclamping
- Centralised automatic lubrication
- Basic coolant system with chip tray at the front
- Telescopic covers and bellow on Z-axis
- Full machine guard
- Manual pulse generator
- RS 232 serial interface
