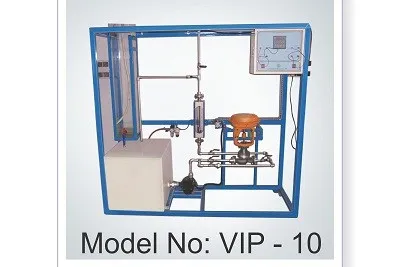

Level Loop Control Trainer

Sinewave Process Control Trainer can be Customised as per the requirement with various options such as PID Based, PLC Based and Advanced PC Based System.
FEATURES
• Compact laboratory type mini plant. • User Friendly control panel. • Leak proof CPVC piping with safety Measures. • Failsafe electrical protections & safety Considerations. • Training Manuals, mimic charts for operation ease • Sturdy frame with caster wheel arrangement for ease in movement. • All component with CE/ISI/ISO standerds.
PID CONTROLLER		ALARAM & INDICATOR / MIMIC DIA. CONTROL PANEL
• Input - 4-20mA • OUput - 4-20mA/SSR • Display - LED • Type - Universal Type • Inbuilt - ADC I/P & O/P		• Sheet metal fabricated • Powder coated / painted control panel. • Complete wired up unit. • Necessary switches, indicators mounted on the panel.
SUMP TANK (WITH DRAIN PLUG)		WATER PUMP
• Capacity - 100 Ltr Approx • Size - 400 x 400 x 600 mm Approx.		• Type - Centrifugal • Capacity - 1/2 HP, 1 Phase
PNEUMATICALLY ACTUATED DIAPHARM CONTROL VALVE		LEVEL TRANSMETER
• Size - 14.3 mm • Action - Air to open • Type - Linear percentage type		• Supply - 24VDC • Output - 4 20mA • Mounting - Field mounting type • Range - 0-2000 Lpm • Type - Capacitance
I / P Convertor		FRL UNIT
• Input - 4-20 mA • Output - 3 To 15 psi		• Input - Upto 10 Kg/cm2 • Output - 0 to 2 kg/cm2
MEASURING TANK (With drain plug)		CONTROL OPTIONS :- OPTIONAL
• Type - Acrylic • capacity - 40 Ltr approx. • Size - 200 x 200 x 600 mm approx.		• PID / PLC / PC • Computer Interface (Optional) • SCADA Software connectivity for analysis of system trainer
ROTAMETER
• Range - 200 to 2000 Lpm • Media - Water
