Brand:
Sinewave Engineering Pvt. Ltd.

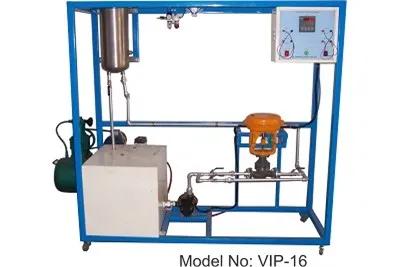

PRESSURE CONTROL TRAINER Sinewave Process Control Trainer can be Customised as per the requirement with various options such as PID Based, PLC Based and Advanced PC Based System.
FEATURES
- • Compact laboratory type mini plant.
- • User Friendly control panel.
- • Leak proof GI piping with safety measures.
- • Failsafe electrical protections & safety Considerations.
- • Training manuals, mimic charts for operation E a s e.
- • Sturdy frame with caster wheel arrangement for ease in movement.
- • All component with CE / ISI / ISO standards.
SPECIFICATIONS- ELECTRICAL CONTROLS
- • Input - 4-20mA
- • Outside - 4-20mA/SSR
- • Display - LED
- • Type - Universal Type
- • Inbuilt - ADC I/P & O/P
ALARAM & INDICATOR / MIMIC DIA. CONTROL PANEL
- • Sheet metal fabricated
- • Powder coated / painted control panel.
- • Complete wired up unit.
- • Necessary switches, indicators mounted on the panel.
- • Indicators mounted on the panel.
PROCESS COMPONANTS PNEUMATICALLY ACTUATED DIAPHARM CONTROL VALVE
- • Size - 14.3 mm
- • Action - Air to open
- • Type - Linear percentage type
I / P CONVERTOR
- • Input - 4-20 mA
- • Output - 3 To 15 psi
SUMP TANK (with drain plug)
- • Capacity - 100 Ltr Approx
- • Size - 400 x 400 x 600 mm Approx.
WATER PUMP OR AR COMPRESSOR
FRL UNIT
- • Input - Upto 10 Kg/cm2
- • Output - 0 to 2 kg/cm2
PRESSURE TRANSMITER
- • Supply - 24VDC
- • Output - 4 20mA
- • Mounting - Field mounting type
- • Range - 0-2000 Lpm
PRESSURE VESSEL - Suitable Size
- • Control Options :- Optional
- • PID / PLC / PC
- • SCADA Software connectivity for analysis of system trainer
- • Connectivity for analysis of system trainer
